Instructions for the Dry Fire Laser Training Systems

Our dry fire laser training system is specially designed for Glock handguns. We currently only offer a product for Glock 9mm handguns, but are working on designs for more brands and calibers. Our patent pending, affordable system enables you to train dry fire drills in the convenience of your home. The Wolfdog system installs in seconds and can be removed just as quickly. Train indoors or outdoors, use laser targets or laser target smartphone apps to increase your effectiveness with your handgun, all without spending hundreds of dollars on ammunition. Currently sold without a laser cartridge, but it is designed to work with the most affordable laser cartridges found here on Amazon.

Installation video:

Installing the Wolfdog system is a multi-step process which consists of removing the existing striker, replacing it with the training striker, and placing the training magazine into the magazine well.

Compatibility:

Known compatible handguns:

  • Glock 19 Gens 3-5
  • Glock 17 Gens 3-5
  • PSA Dagger

WARNING:

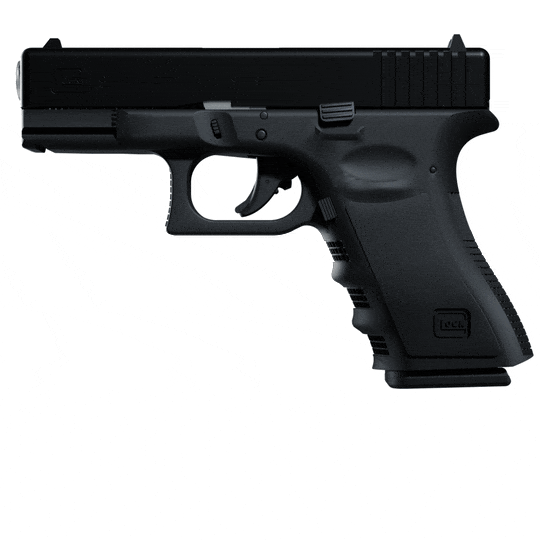

BEFORE INSTALLING OR USING THE WOLFDOG TRAINING SYSTEM ENSURE THERE IS NO LIVE AMMUNITION IN THE FIREARM BY CHECKING BOTH THE MAGAZINE AND THE CHAMBER. WOLFDOG TRAINING LLC IS NOT RESPONSIBLE FOR THE MISUSE OF FIREARMS. USE GOOD FIREARM SAFETY PROCEDURES AND BE SAFE.

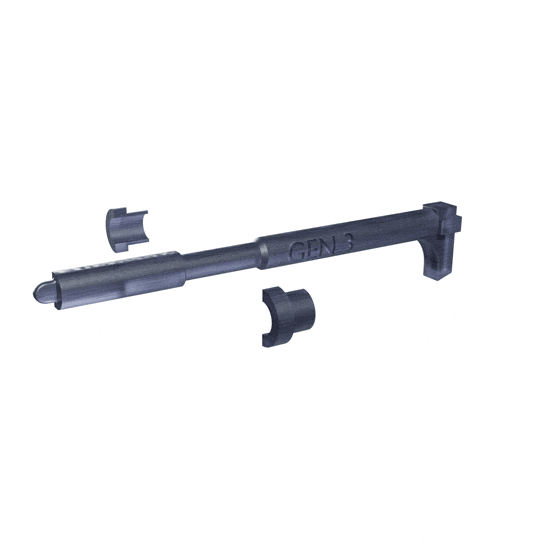

STRIKER ASSEMBLY:

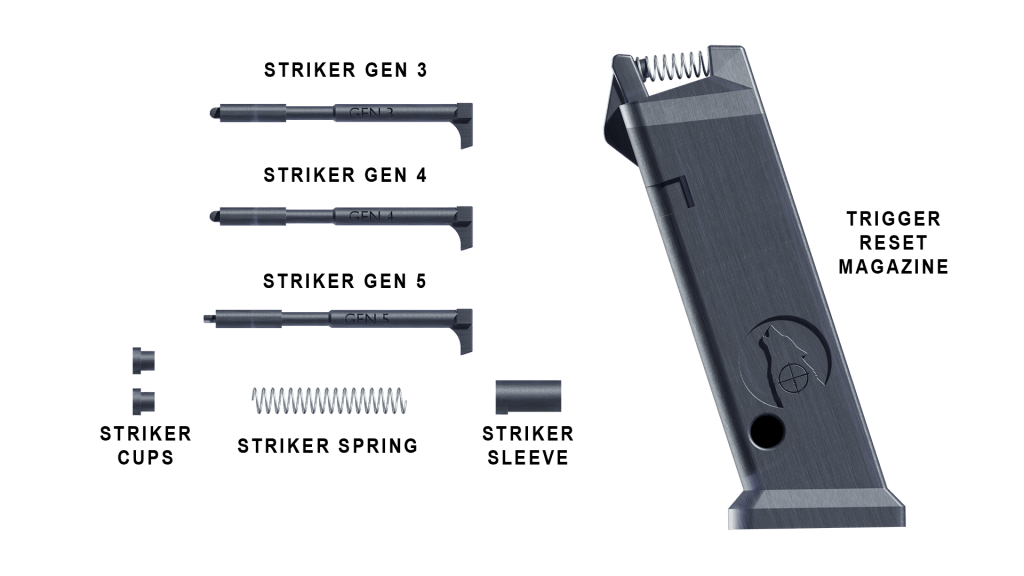

Choose appropriate striker for you Glock generation. Each striker marked with generation on the side.

  • Slide striker sleeve and striker spring onto striker
  • Compress spring and lock spring in place with striker cups.

INSTALLING LASER CARTRIDGE

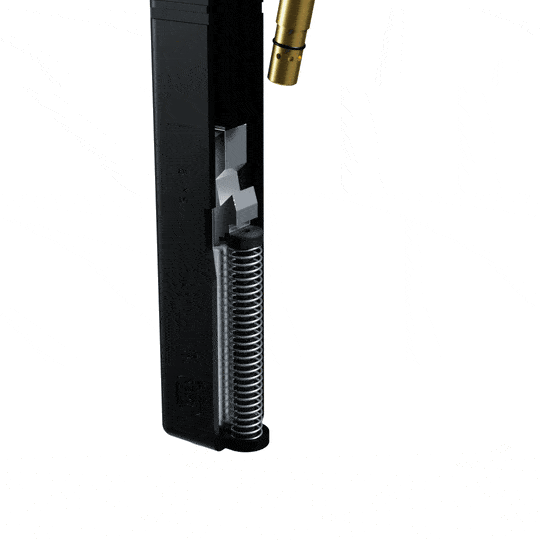

Put your laser training cartridge (recommended laser cartridge) into the bore according to the laser cartridge manufacturing guidelines. Below you will find a simple demonstration of typical laser cartridge installation.

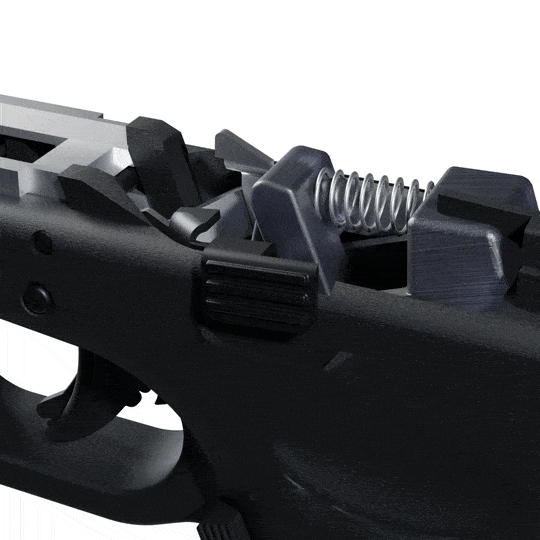

  • Pull back slide
  • Pull toggle down
  • Pull trigger

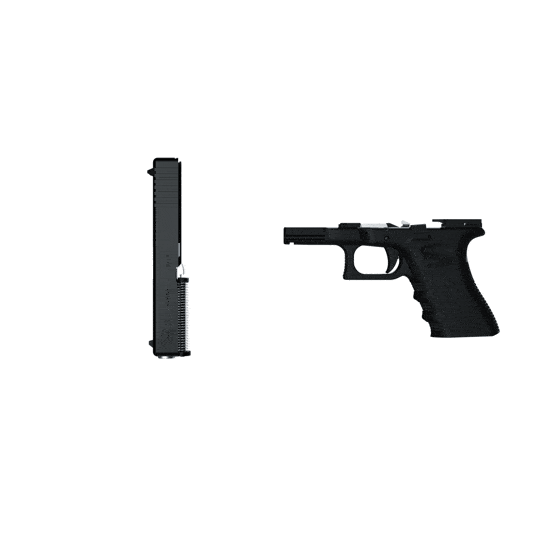

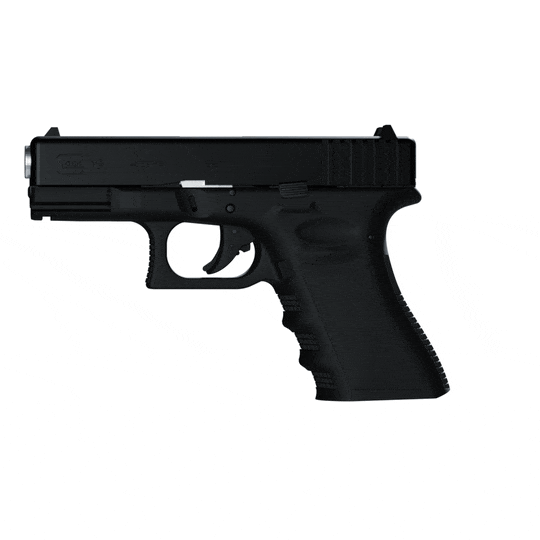

  • Remove slide
  • Remove slide spring
  • Tilt barrel out
  • Firmly place laser cartridge into barrel

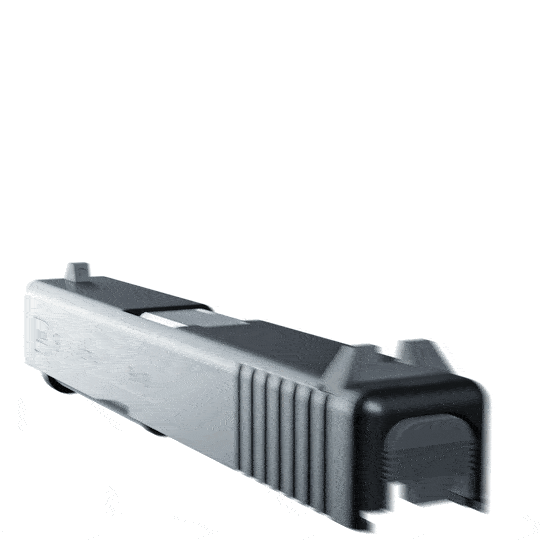

INSTALLING TRAINING STRIKER

  • Depress striker sleeve with small flathead screwdriver or punch
  • While depressing sleeve, remove slide cover plate
  • Remove stock striker assembly
  • Install training striker
  • Replace slide cover plate while depressing sleeve and extractor spring plunger.
  • Test Laser by pulling back and releasing training striker
  • If laser is stuck on, push the laser cartridge further into the barrel.

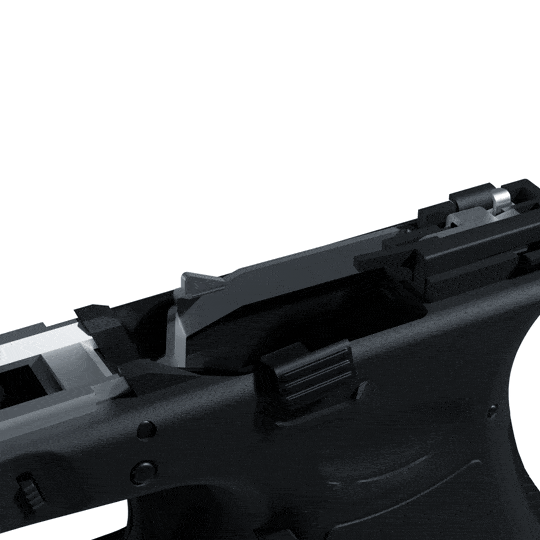

INSTALLING TRAINING MAGAZINE

  • Push trigger bar forward
  • Insert training magazine
  • Ensure proper functioning of training mag by pulling the trigger. The training mag should push the trigger reset bar forward after user releases the trigger.
  • Once the training striker, training magazine, and laser cartridge are installed, simply rack the slide to begin. After the initial slide rack, there is no need to rack repeatedly, simply depress the trigger as many times as desired.
  • There are several laser training apps which allow you to track your accuracy while training. Due to the inherent inaccuracy of laser cartridges, your sights may not line up with the laser, but some apps allow for “sighting-in” your firearm.
  • Another option for laser training are electronic laser sights which can be set up similar to traditional steel plates.
  • Enjoy the freedom of training without paying for every round.
